Wireless Signal Repeater

Overview

The Wireless Signal Repeater relays data from sensors to the WARP if there is poor signal due to distance or obstructing items.

It receives sensor data and relays them to the WARP via wireless signal.

It should always be connected to a power outlet using the power adapter.

It contains a backup battery with a 7-hour duration in case of interruption to the power supply.

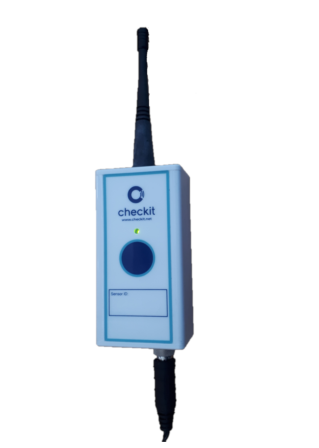

Wireless Repeater.png

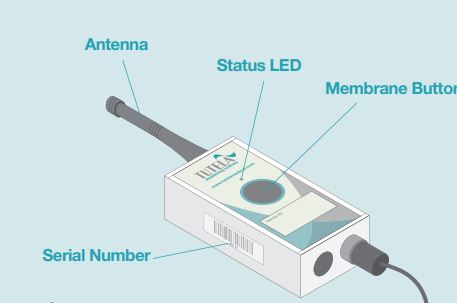

Description

Membrane Button

The membrane button is located on the front of the device.

If the membrane button is pressed and released, the signal repeater will reset/re-establish a connection with the WARP (or another signal repeater if applicable).

LED

The status LED is located above the membrane button.

It will display one of the following:

  • Solid green - connected to the WARP (or another signal repeater if applicable)

  • Green & amber flashing - attempting to connect to the WARP (or another signal repeater if applicable)

  • Solid amber - running on backup battery supply (see Signal Repeater Troubleshooting)

  • Flashing red - not connected to the WARP or another signal repeater if applicable (see Signal Repeater Troubleshooting)

  • No LED - the signal repeater is powered off (see Signal Repeater Troubleshooting)

Antenna

The antenna receives data from sensors.

Serial Number

The serial number is located on the side of the device.

Signal repeater LED.JPG

Safety Precautions and Warnings

  • Only use the power adapter provided. Using an unapproved adapter may cause damage or pose a safety risk.

  • For indoor use only. Do not use the power adapter or device in wet or damp environments.

  • Do not expose the device to water or moisture. This product is not water-resistant and may malfunction if exposed to liquids.

  • Do not attempt to disassemble or modify the device. This may result in electric shock, fire, or voiding of certifications (CE, UKCA, FCC).

  • Ensure adequate ventilation around the device to prevent overheating. Do not cover or place inside enclosed spaces.

  • Do not use the device if the power cable or adapter is damaged. If you notice fraying, wear, or other damage, stop using it immediately and replace it.

Technical Specification

Part No.

EU/UK variant: GENII/SRPT/100

US variant: GENII/SRPT/200

AC power range:

110/240VAC 50/60HZ

Logging frequency:

1 minute

Rechargeable battery:

7 hours standby time from AC power loss

Signal range:

Up to 70ft

Signalling protocols:

Mi Wi based T-Mesh™ self-healing protocols
