Archive a Sensor

You can archive a sensor if you want to remove the sensor from the Hub and retain its historical data.

You must be an Administrator to archive a sensor. See User Roles for more details.

This action is irreversible.

Archived sensors should be returned to Checkit. Please contact us.

If you archive a sensor, it will still appear on the Control Centre under the Automated Monitoring Status

  1. Log in to the Control Centre.

  2. Go to Automated Monitoring Devices >View/Edit.

  3. Select the Hub you want to remove the sensor from.

  4. Click Maintenance.

  5. Click the 3 vertical dots on the sensor you want to remove.

  6. Click Remove Device.

  7. Click Archive.

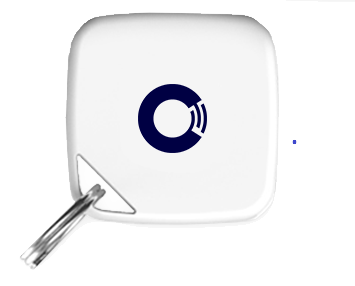

  8. Press a magnetic tag on the bottom left corner of the sealed sensor/power unit battery as applicable for approximately 3 seconds. You will see a flashing green Mode LED. When the Mode LED turns flashing

    amber, remove the magnetic tag. See the animation on the right.

  9. Click the right arrow to continue. You will see a message on screen stating 'Device identified'. Click the right arrow again to continue.

Tagging a sealed sensor

The magnet tag could interfere with heart pacemakers and implantable cardioverter-defibrillators (ICDs).

If you do not want to use a magnetic tag or you do not have one to hand, you can skip steps 8 and 9 and manually confirm the device instead.

To do so, click Manually confirm device, then enter the last 4 digits of the serial number on the back of the sensor.

The serial number is located on the back of the sensor in the following format: S/N: 0000-0000-0000-0000.

  1. You will see a message stating that the word ‘Archivedwill be added to the sensor name. Click the right arrow to continue.

  2. You will see a warning stating that ‘this operation cannot be undone once completed’. Click the right arrow to continue.

  3. You will see a message on screen stating that ‘the device has been archived’. Click the right arrow, then click the Checkit icon at the top-centre of the screen to return to the homepage.

The date and time the sensor was archived will appear in the Control Centre next to the MAC address.
