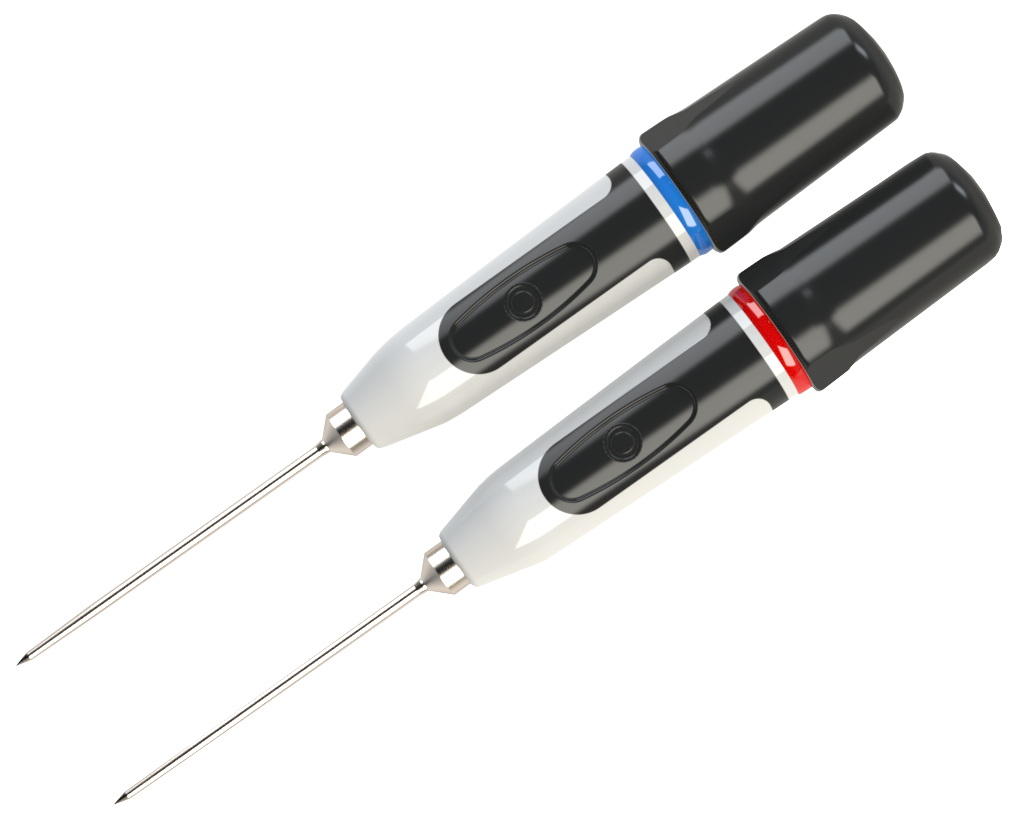

Checkit Probe

The Checkit probe is designed for insertion into items such as food and water.

It pairs with the Checkit App recording data with a unique ID for traceability.

See Take a Temperature Reading for instructions on how to use the Checkit Probe.



Warning: Avoid overheating the probe body

Never leave the device inside an oven, grill, smoker or microwave while cooking.

Do not leave it under heat lamps or on hot surfaces.

When checking temperatures above a grill or fire, take care that the device body does not get too hot. Take measurements quickly and move the device away from the heat. If the heat is too hot for your hand without a protective glove, it is probably too hot for the device.

Never place the probe directly onto hot coals or into an open flame, as excessive heat can cause damage.

Take care when handling the probe after measuring hot food or liquids, as the metal may be very hot. Allow it to cool before touching, folding or storing it.

Features

  • Dynamic Bluetooth® pairing to any number of devices

  • Fully immersible in water and detergent at 65°C (rated to IP67)

  • Durable, anti-roll handgrip design

  • Intelligent low battery warning and simple user-replaceable battery

  • Unique probe ID tagged with the Checkit App™ using Bluetooth®

  • Colour-coded for specific uses and checks

  • Haptic feedback (vibrating handgrip) for user confirmation

  • Secure, tamper-proof electronic calibration certificates

Technical Specification

Device operating temperature range:

-5° to +60°C (+23° to 140°F)

Warning: The probe can measure temperatures up to +200°C, but the device itself must not be exposed to ambient temperatures above +60°C. Do not leave the device inside an oven or other high-temperature environment.

Probe measurement temperature range:

-25°C to +200°C (13° to 392°F)

Temperature accuracy:

Temp Range

Accuracy

−25°C to +70°C (13°F to +158°F)

±0.4°C (±0.7°F)

+70°C to +120°C (+158°F to +248°F)

±0.5°C (±0.9°F)

+120°C to +200°C (+248°F to +392°F)

±1.5°C (±2.7°F)

Temperature resolution:

1 decimal place

Temperature response time:

<5 seconds

Ambient operating temperature range:

-5° to +60°C (+23° to 140°F)

Colour variants:

Red or blue coded

User feedback modes:

Vibration, Bluetooth® comms to the app

Wireless communications protocols:

Bluetooth® Low Energy (LE)

Power source:

3V CRI23A lithium battery

To replace the battery, twist the end cap and replace it with a like-for-like battery.

Battery life/replacement frequency:

4-6 months (usage dependent)

Probe type/dimensions/material:

Piercing Probe: 304 stainless steel, 110mm shaft length

Hand grip material:

ABS and TBE polymers with anti-microbial additive

Weight:

100g

Water resistance:

IP67

Humidity:

Probe will operate in environments of <=90% non-condensing

Regulatory compliance:

CE, FCC, UL and NSF

Calibration:

Calibrated to traceable standards, certification available on request
