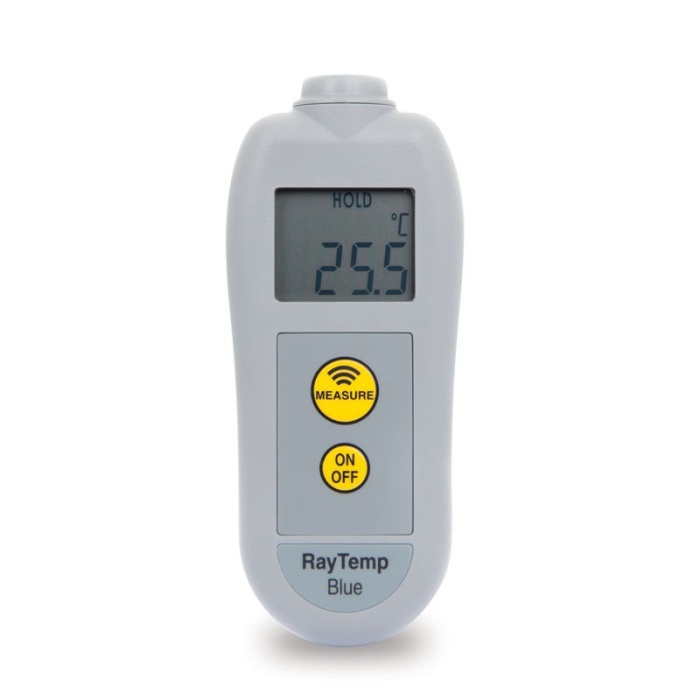

The ETI RayTemp ®Infrared Probe is designed to measure the surface temperature of items such as packaged goods, food, and water without direct contact.
It pairs with the Checkit App recording data with a unique ID for traceability.
ETI probes must be enabled on each Android device running the Checkit App before first use. Once enabled, all supported ETI probe models will work on that device. See Enable/Disable Checkit/ETI Probes for instructions.
See Take a Temperature Reading for instructions on how to use the ETI RayTemp ®Infrared Probe.
Warning: Avoid overheating the probe body
Never leave the device inside an oven, grill, smoker or microwave while cooking.
Do not leave it under heat lamps or on hot surfaces.
When checking temperatures above a grill or fire, take care that the device body does not get too hot. Take measurements quickly and move the device away from the heat. If the heat is too hot for your hand without a protective glove, it is probably too hot for the device.
Never place the probe directly onto hot coals or into an open flame, as excessive heat can cause damage.
Take care when handling the probe after measuring hot food or liquids, as the metal may be very hot. Allow it to cool before touching, folding or storing it.
Features
-
Dynamic Bluetooth® pairing to any number of devices
-
Securely transmits data to the Checkit App
-
Free traceable certificate of calibration
-
Time-saving, paperless recordings
-
Target distance/diameter ratio 5:1
Technical Specification
|
Model Number: |
228-920 |
|---|---|
|
Device operating temperature range: |
−20 to 50°C Warning: The probe can measure temperatures up to +349.9°C, but the device itself must not be exposed to ambient temperatures above +50°C. Do not leave the device inside an oven or other high-temperature environment. |
|
Probe measurement temperature range: |
-49.9 to 349.9 °C |
|
Resolution: |
0.1 °C/°F |
|
Accuracy: |
±1 °C (0 to 100 °C) otherwise ±2 °C or ±2 % of reading whichever is greater |
|
Field of View: |
target ratio 5:1 |
|
Emissivity: |
0.95 default - adjustable 0.01 to 1 |
|
Bluetooth module |
Bluetooth LE |
|
Battery: |
3 x 1.5 volt AAA |
|
Battery Life: |
3000 hours |
|
Display: |
12mm LCD |
|
Dimensions: |
25 x 56 x 128mm |
|
Weight: |
140 grams |
|
Case Material: |
ABS plastic includes Biomaster product protection |
