Sensor Readings
Sensors take a reading and send these data to the WARP every minute.
The WARP sends these data to the cloud every 5 minutes.
Dual Alarm/Status Contact Monitor sensors only send data if they are tripped.
View Sensor Readings
On the WARP Display Screen
You can view the most recent sensor reading on the WARP display panel. See image 1.
The reading will appear:
Green if there are no active sensor alarms/sensor alerts
Red if there is an active sensor alarm
Amber if there is an active sensor alert

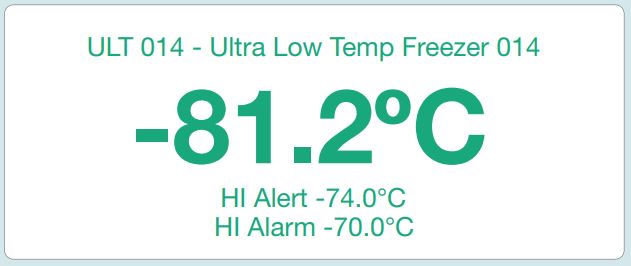

Image 1: A reading on the WARP display panel
On the CAM+ Website
You can also view the following reports on the CAM+ Website containing sensor readings:
Tabular Sensor Data Report: a record of an individual sensor’s readings in tabular form
Sensor Summary Report: a record of an individual or all sensor’s minimum, maximum, and average readings (and Mean Kinetic Temperature (MKT), if applicable)
Graphical Sensor Data Report: a record of an individual sensor’s readings in graphical form
Compare Graphs Report: a record of multiple sensors' readings in graphical form
Check Readings Report: a record of the current reading of all sensors in a department
Tabular, Graphical, and Compare Graphs Reports contain sensor readings at 5-minute intervals. Please contact us if you require a report containing sensor readings at 1-minute intervals.
