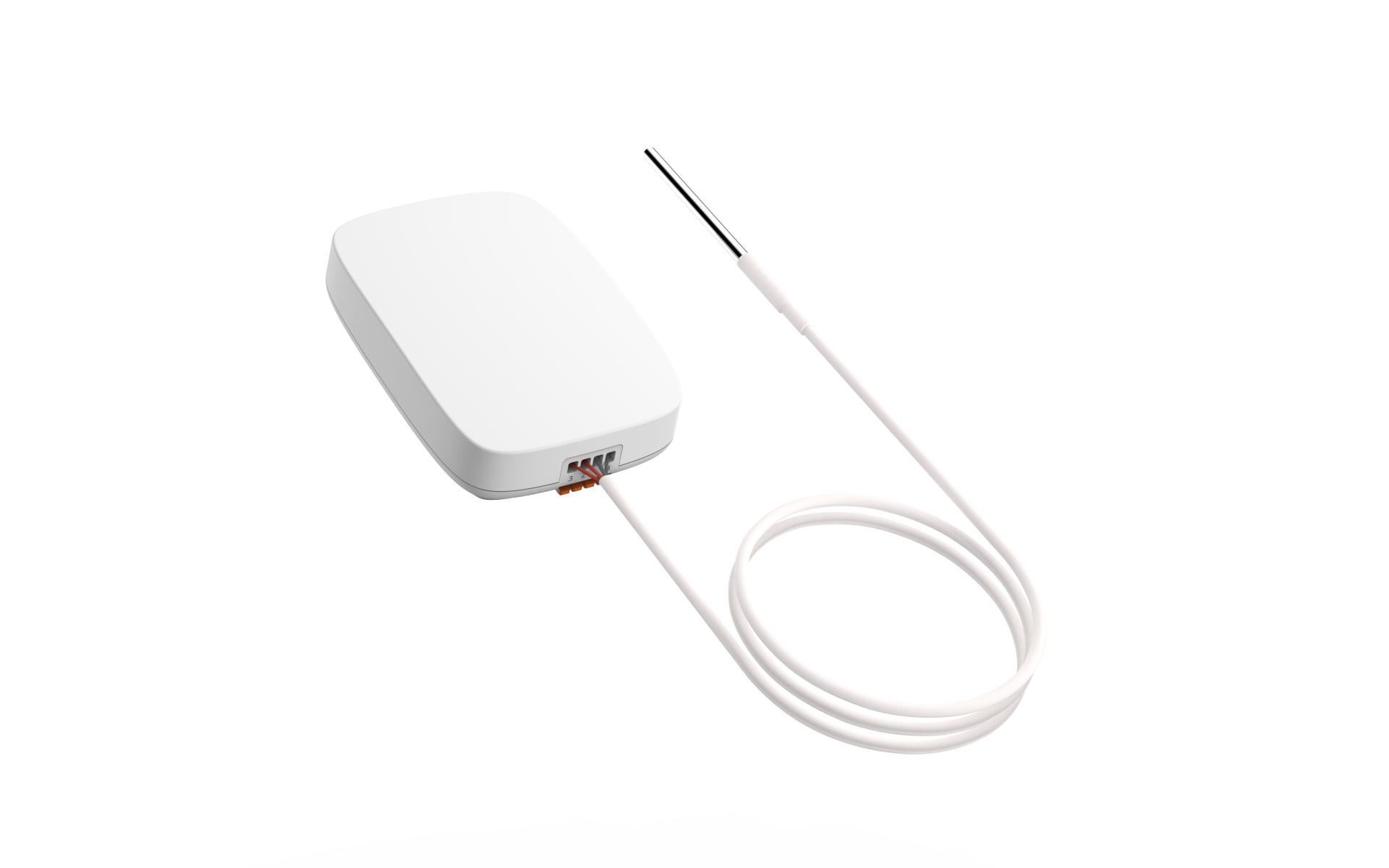

PT1000 Sensors measure air and liquid temperature.
They consist of 2 parts: a transmitter and a probe.
The probe measures temperatures at configured intervals. The transmitter sends data to the Cloud Connector. A cable connects the two parts.
.png?cb=4f7c10edd4def2e94c961623cfcd8092)
Features
-
Continuous automated temperature measurements
-
Reliably measures and stores temperature data at configured intervals
-
Sends data to the cloud at configured intervals
-
Ensures continuous records for audit and review
-
Internal memory to store readings in case of an outage
Technical Specification
|
General |
|
|
Part number: |
EU: TP-102772 US: TP-102774 |
|
Size: |
95x66x25 mm / 3.74x2.6x0.98 in |
|
Weight: |
116 grams / 4.1 oz |
|
IP rating: |
IP20 |
|
Sensor Technology: |
RTD PT1000 |
|
Mounting method: |
Peel & stick or screw |
|
Temperature specs |
|
|
Measurement range: |
Depending on the probe |
|
Accuracy: |
Depending on the probe |
|
Resolution: |
Depending on the probe |
|
Drift: |
Depending on the probe |
|
Data backfill |
|
|
Sensor storage capacity: |
Up to 50,000 datapoints |
|
Timestamp accuracy: |
Within 1% of the configured interval |
|
Calibration |
|
|
Sensors can be supplied with ISO17025 certificates. |
|
|
Ambient operating conditions (transmitter unit) |
|
|
Temperature: |
0 to 50°C / 32 to 120°F |
|
Humidity: |
0 to 90% RH (non-condensing) |
|
Wireless communication |
|
|
Protocol: |
SecureDataShot TM |
|
Frequency: |
EU: 868 MHz ISM band US: 915 MHz ISM band |
|
Range: |
Indoor: 250 m / 82 ft Free space: 10km / 23,800 ft |
|
Certification & compliance |
|
|
EU: CE, UKCA, WEEE US/Canada: FCC, ISED |
|
|
Battery |
|
|
Type: |
2x AA |
|
Replaceable: |
Yes |
|
Lifetime: |
15 years *with the transmitter unit placed in a room temperature environment |
