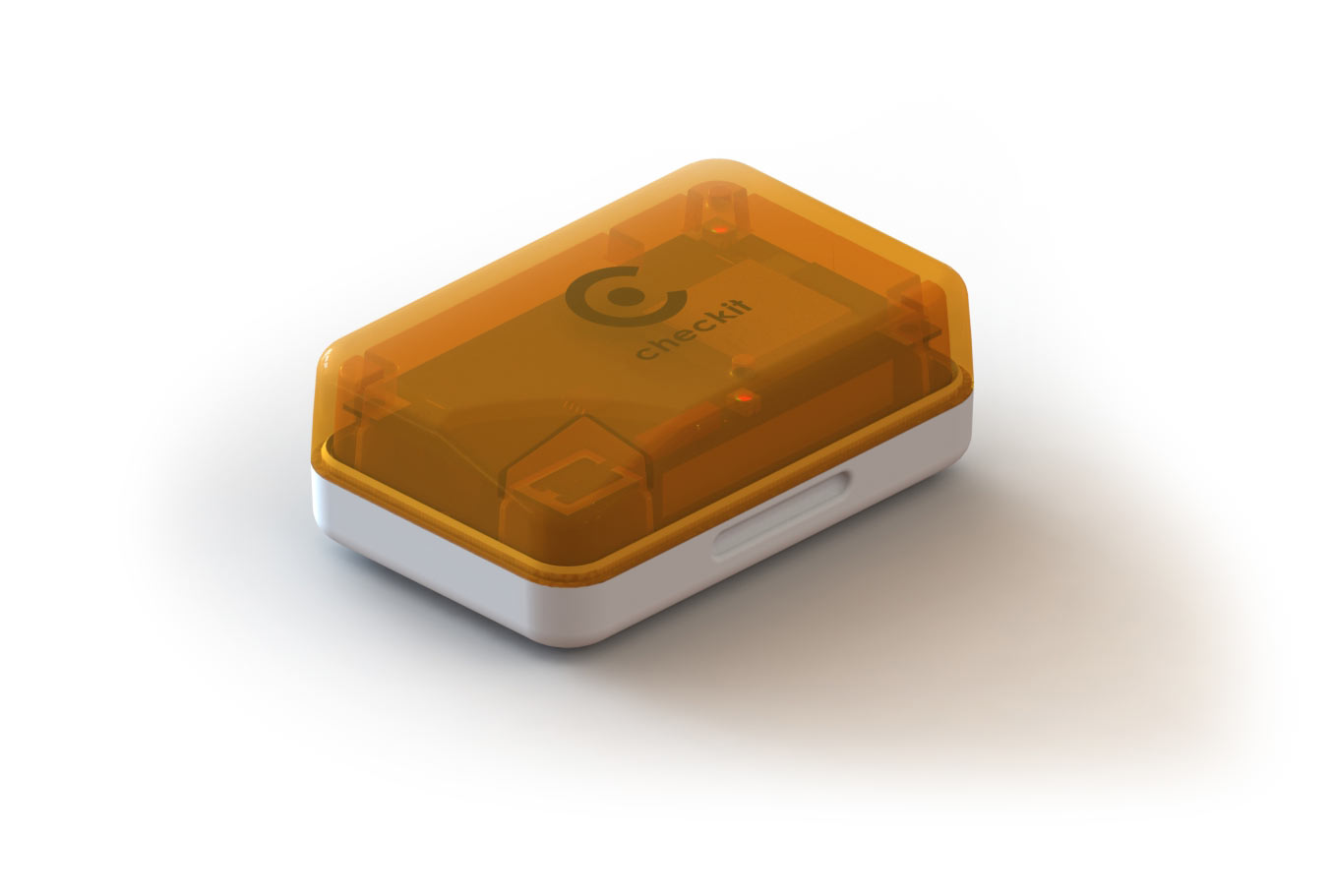

Sense Range: Hot Sensor

Hot sensors measure air temperature between -30°C (-22°F) and 100°C (212°F). They are often used in buffet/ hot hold units.


Features

  • Continuous automated temperature measurements

  • Reliably measures and stores temperature data every five minutes

  • Sends data to cloud every 15 minutes

  • Ensures continuous records for audit and review

  • Internal memory to store readings in case of outage

Technical Specification

Dimensions:

49.0 x 75.0 x 27.6 mm

Weight:

80g (including wall bracket)

Serial Number:

16-digit serial number on the back of the device in the following format: S/N: 7030-3535-XXXX-XXXX

Water Resistance:

IP67 rated

Power Source:

Non-rechargeable lithium thionyl chloride 3.6V Axial (1800mAh) AA size battery (sealed – not replaceable)

Ambient Operating Conditions:

0 to +100°C (32 to +212°F) at 0 to 100% humidity (condensing or non-condensing)

Wireless Communication Protocol:

ZigBee® 2.4 GHz (IEEE 802.15.4) with a frequency range of 2400-2500 MHz, max power of 8 dBm

Sensor Type and Integration:

Measurement Specialties TSY02D (ASIC)

Temperature Range:

0 to +100°C (32 to +212°F)

Temperature Accuracy:

±1.0°C (0 to 100°C) / ±1.8°F (32 to 212°F)

Temperature Resolution:

0.1°C

0.1°F

Data Sampling/Transfer Rate:

Data sampling every 5 minutes, data transfer every 15 minutes

Data Storage Capacity:

5 days

Certification:

CE compliant

User Feedback Modes:

Magnetic reed switch and LEDs for status indication

Exposure to temperatures above 150°C (302°F) may result in fire, explosion and a severe burn hazard. If there is any risk of contacting surfaces above said temperature, the use of a tether is recommended.
